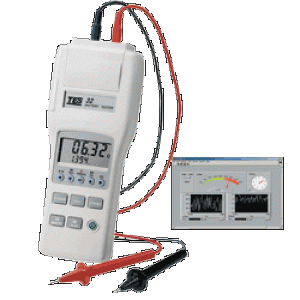

TES-32 Battery Capacity Tester (RS-232)

Storage Battery Systems Battery Capacity Testers,
Check battery condition in seconds, with the battery in service!

Battery Types Tested Compact storage batteries, Alkali and lead-acid batteries..
Battery Capacity 0 to 500AH
Resistance Ranges : 40mΩ, 400mΩ, 4Ω, 40Ω
Resolution : 10μΩ, 100μΩ, 1mΩ, 10mΩ
Accuracy : ±(1%reading + 8digits) on all ranges.
Measurement Current : 25mA, 2.5mA, 250μA,25μA
Frequency : 1KHz
Accuracy : ±10%
Voltage Measurement : 4V, 40V
Resolution : 1mV, 10mV
Accuracy : ±(0.1%rdg ±6digits)
Open Circuit Voltage 3.5Vpp max
Data Memory 500 data sets
Continuous Data Memory 9600 data sets (only use PC download)

Setting : Resistance upper and lower limits and voltage
throughold limit.
Memory : 99 sets of values

Operating Environment 0℃ to 50℃ (32℉ to 122℉), 80%RH or less, non-condensing.
Maximum Input Voltage 50VDC
Power Supply or AC Adapter Six size AAA 1.5V
Battery Life 7 hours
Weight Approx. 500g including batteries
Dimensions Approx. 250(L)×100(W)×45(H)mm
Accessories Instruction manual, Batteries, Test probe, Software,
RS232 cable.
Optional Accessories AC adaptor (Isolated output 9VDC)
