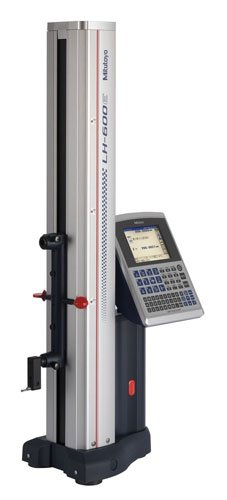

Height Gauge

World's best-in-class accuracy 2D measurement system
A sophisticated height gage offering exceptional accuracy of (1.1+0.6L/600)μm*

  • Filter
Category: Height Gauge
Created on: 23 May 2013

Features Excellent accuracy of (1.1+0.6L/600)μm with 0.1μm/0.5μm resolution/repeatability. Perpendicularity (frontal) of 5μm and straightness of 4μm are guaranteed. Pneumatic full/semi-floating system allows adjustment of air-cushion height. Basic statistical functions are provided and, additionally, RS-232C / USB data output provides the option of evaluating measurement data externally with SPC software on a PC. One-key operation for running a semi-automatic measurement. Data entry from a Digimatic tool.
