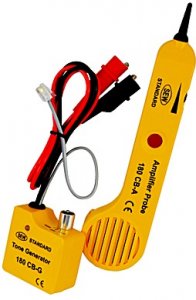

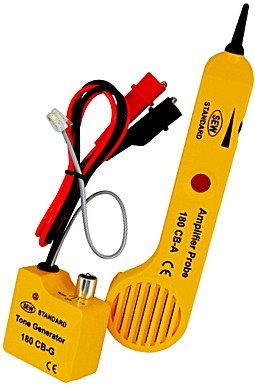

● The Amplifier Probe is designed to identify and trace wires or cables within a group without damaging the insulation. ● Works with any Tone Generator to identify wires. ● Volume control for increased sensitivity and adjustable to suit work environment. ● Recessed ON/OFF button prevents battery drain. ● A phone jack is designed for headset or handset.
Tone Generator
● Tone Generator is a great tool for locating and identifying cable pairs or individual conductors. ● 180 CB-G doesn't only provide the function of a tone generator, but also serves as a continuity and polarity tester. ● Test results are displayed by a bi-colored LED.
SPECIFICATIONS
Amplifier Probe
Frequency
1Hz~12kHz
Receiver distance
< 50cm
Sensitivity control
ˇ
Probe tip
Fixed
Power source
9V(6F22) × 1
Dimensions
230(L) × 56(W) × 27(D)mm
Weight
Approx. 125g (battery included)
Tone Generator
Wave form
Square Wave
Frequency
1kHz±15%
Over voltage protection
100V DC
Single tone
ˇ
Alternating tone
Fast
Connection
RJ11 connector, alligator clip x 2, RJ45 connector (optional)
