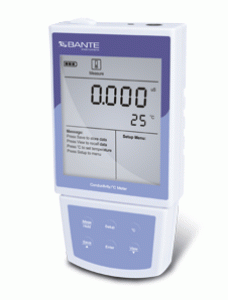

BANTE 520 Portable Conductivity/°C Meter

Bante520 is aneconomical and easy-use conductivity meter for

field or laboratory applications. The meter with auto-ranging

feature that can quickly measures the electrical conductivity of

liquids, accuracy up to ±0.5% full scale.


Single point push-button calibration allows user to uses customized

    calibration solution.

Adjustable cell constants and temperature coefficients.

Automatic Temperature Compensation ensures highly accurate

    measurements over the entire range.

Manual temperature calibration provides accurate measured value.

Selectable either temperature units between degrees Celsius (°C)

    and degrees Fahrenheit (°F).

Hold function freezes the current displayed value for easy viewing

    and recording.

Help message as a operational guide to helps you understand how

    to use meter.

Setup menu lets user customize temperature units, date and time to

    meet measurement requirements.

Expanded memory stores and recalls up to 64 readings.

Built-in real-time clock stamps stored data to meets GLP standards.

Stored data can be transferred into personal computer via USB

    communication interface.


     Model   Bante520
   Conductivity Range   0~20mS/cm (Max.200mS/cm)
   Conductivity Accuracy   ±0.5% Full Scale
   Calibration Points   1 point per range
   Calibration Solutions   146uS/cm, 1413uS/cm, 12.88mS/cm
   Temperature Range   0~100°C
   Temperature Accuracy   ±1°C
   Temperature Calibration   Manual
   Temperature Compensation   0~50°C, Automatic or Manual
   Temperature Coefficient   0~3.9% per °C
   Cell Constant   K=0.1, 1, 10, Selectable
   Normalization Temperature   25°C
   Sensor Type   Platinum (Order Code: CON-0.1, CON-1 or CON-10)
   Hold Function   Manual
   Memory   64 data sets with Date/Time stamping
   Output   USB Communication Interface
   Connector   6-pin
   Power Requirements   9V/800mA Battery
   Battery Life   Approximately 150 hours
   Dimensions   185(L)×88(W)×32(H)mm
   Weight   300 grams
  Order Code and Accessories:
     Order Code   Accessories



K10 Conductivity Electrode (Made in UK)

TP-100K Temperature Probe

Conductivity Calibration Solution (1413uS/cm)

Carrying Case and 9V Battery




CON-1 Conductivity Electrode

TP-100K Temperature Probe

Conductivity Calibration Solution (1413uS/cm)

Carrying Case and 9V Battery
