BORESCOPES AND VIDEOSCOPES

WOH003- 20M 28MM 240 Inspection Camera System with mini USB port, Camera Keys, & built-in recorder-20m

Description: Click here for a larger image - Wöhler VIS-240 Service Camera Inspection with Digital Meter Counter & SD Card

WOH003-240 VIS-240 Shown-Made in Germany



  • Analysis of defects in water pipes of 1 2/3" Ø and bigger
  • Flue gas lines up to about 5.9" Ø
  • Chimneys up to a size of 6.3" x 6.3"
  • Air conditioning and heating lines
  • Inspection of ducts
  • For visual inspection of pipes measuring at least 1 2/3" Ø to 5.9" Ø
  • Digital Memory and RCA Video output for recording

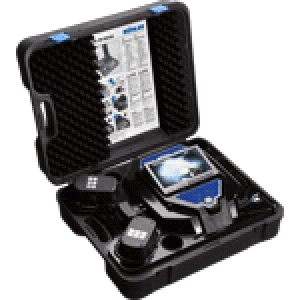

  • Complete inspection set in one self-contained carrying case
  • Waterproof, flexible camera head of 1" Ø and extremely high photosensitivity
  • Cordless operation
  • Super bright TFT monitor in color for brilliant pictures
  • Tiltable monitor with 6.5 ft. cable
  • Metric marked push rod cable
  • Battery-supplied inspection of 1.5 h with 2 batteries

{youtube}k36CmPPQqCI{/youtube}









The WOH003-240 Service Camera Inspection with Digital Meter Counter & SD Card combines state-of-the-art camera technology, cordless operation, compact portability and a rugged durability. This provides the ultimate value package for inspecting piping from 1 1/4" to 6" in diameter. The Wohler VIS-240 series' 1" mini camera head delivers a crystal clear picture of any internal piping problem and is waterproof to a depth of 100 ft. Dual 12 V rechargeable batteries allow for over 1 1/2 hours of cordless operation. The WOH003-240 LCD screen provides brilliant picture quality which can be documented directly on the integrated SD card, to a VCR or other electronic devices through it's RCA video / USB output. The 60 ft. distance indicated push rod cable with integrated digital distance measuring pinpoints the exact location of the problem. All of the WOH003-240 series is boxed in a heavy duty carrying case bringing all the rugged durability expected from Wohler products.


Features at a Glance

Versatile Application
The WOH003-240 Inspection Camera is the essential tool to do commercial, residential, and industrial inspections.

Flexible
The Waterproof, rugged color camera head with a diameter of just 1" easily negotiates with 90° bends - Even in small pipes no wider then 1 1/4".

Exact Location
The digital meter counter with a resolution of 0.1 feet help to easily locate the damaged spots

Super Bright Lighting
The LED lighting of the camera head illuminates the darkest environments

Digital Recording
The new recording function allows you to save and replay the inspection on a 2GB SD Card

Brilliant LED Screen
The detachable TFT-monitor shows crystal clear pictures which can be recorded on a SD-card or via USB-connection directly on your computer.

Specifications

Description: Click here for a larger image - Wöhler VIS 230 Series: Monitor

Monitor

Size Housing

7" x 4.5" x 1.3"

TFT-Display

7" / 16:9 format

Video-out

VCR



1 lbs

Miniature - Camera Head

Sensor Type

1/3" Color CCD

Resolution

420 lines

Pixel

500 x 582 (PAL), 500 x 592 (NTSC)

Sensitivity

0.5 Lux

Field of view

120°

Light source

12 white LEDs

Protection

Waterproof nach IP 68

Size

1" x 1.5" Diameter

Working Temp.

14 - 122°F, RH 95% Max

Rod



Electronic distance measurement

Length

60 Feet/20m

Carrying case, Heavy Duty

Size

20" x 17" x 7" (L x W x H)

Ordering Information Model Description Buy Online Price WOH003-240 Service Camera Inspection with Digital Meter Counte, mini USB port, Camera Keys, and built-in recorder
Included Accessories

  • 1 - Operation Manual
  • 1 - Heavy Duty case with camera head color
  • 1 - TFT wider screen monitor
  • 1 - 6 ft connection cable
  • 1 - 100 ft GRP rod
  • 2 - Batteries
  • 1 - Power Supply
  • 1 - SD Card

Included





Accesories

Item no. 3884 J
Description: 3884

Wöhler VIS Guidance Set 100

for VIS 3xx
consisting of: Protection sleeve, Roller guide and centering star

Item no. 3853 J
Description: 3853

Wöhler VIS Centering Brush Extension

for Wöhler VIS 2000 / 2xx / 3xx
20 cm Ø with inner and outer thread for endless extension

Item no. 3854 J
Description: 3854

Wöhler VIS Centering Brush

for Wöhler VIS 2000 / 2xx / 3xx
20 cm Ø with 6 brushes, with thread, centers the GRP camera rod, to guide the camerad head

Item no. 56102 J
Description: 56102

Wöhler VIS 2xx / VIS 3xx Quick Charger

2,5 A / 230 V / 50 H

Item no. 7817 J
Description: 7817

Wöhler Miniature Camera Head Color

with leather case, 26 mm Ø, with flexible adapter and leather case

Item no. 3820 J
Description: 3820

Wöhler L 24 Locator Set

receiver for Wöhler L 24 locator with 9 V battery, headset and transmitter for Wöhler L 24 locator receiver for Wöhler L 24 locator

Item no. 3675 J
Description: 3675

Replacement Plastic Domes (10 pcs.)

for VIS 3xx

Item no. 3682 J
Description: 3682

Protection Sleeve

for VIS 3xx

Item no. 3636 J
Description: 3636

Pan & tilt camera head 40 mm Ø

pluggable
with leather bag

Item no. 3857 J
Description: 3857

guidance weight, stainless steel

for mini camera head 740 gr

Item no. 3634 J
Description: 3634

guidance ball

for flex part of camera push rod
improves ability to go through bends

Item no. 3674 J
Description: 3674

Glass Dome

for VIS 3xx

Item no. 3169 J
Description: <a href=http://mgkg.woehler.com/en/scripts/pictures/article.php?mode=xsmall&abiId=" data-mce-src="http://metermalaysia.com/airflow3/wohler33_clip_image017.jpg" border="0" height="58" width="58">

Car charger Wöhler VIS 2xx / VIS 3xx

18 V

Item no. 3681 J
Description: 3681

Camera Roller Guide

for VIS 3xx
